Wire rope slings are available in various sizes:
From 5 mm to 20 mm diameter
Maximum capacity 72,900 kg using 4 legs
For more details on wire rope sling capacities, please refer to the load specification table.
Features:
Capacity up to 900 kg

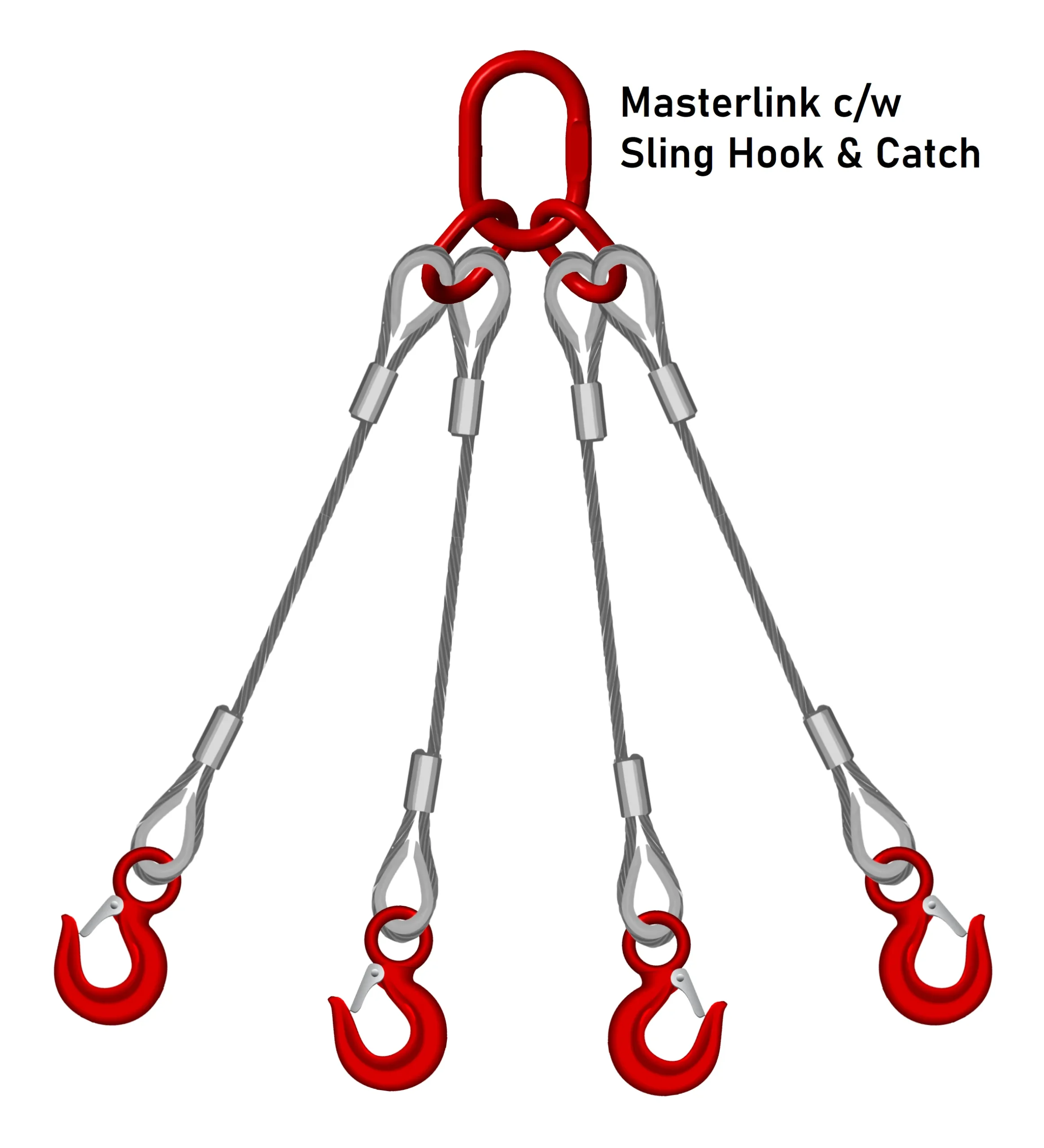

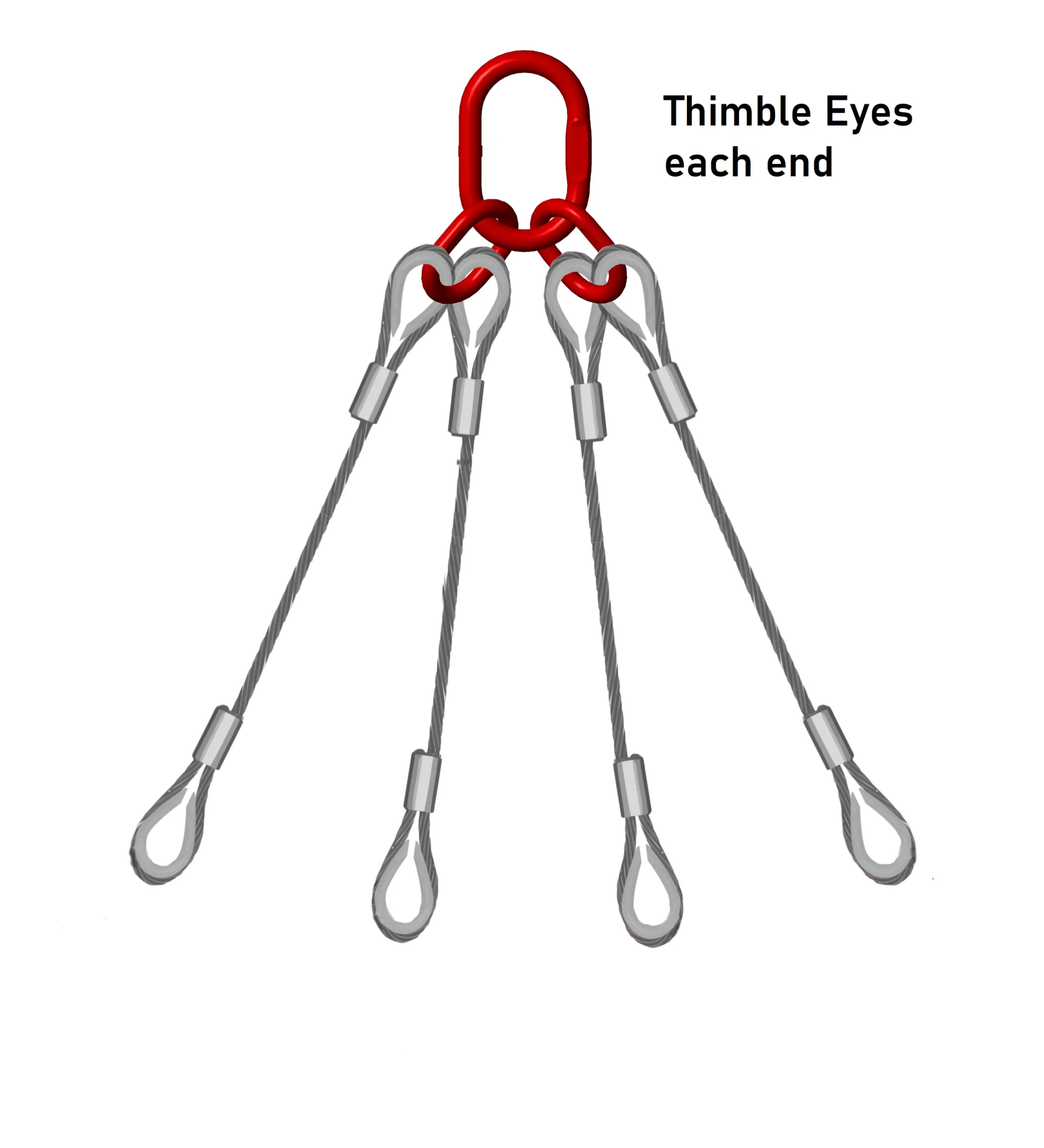

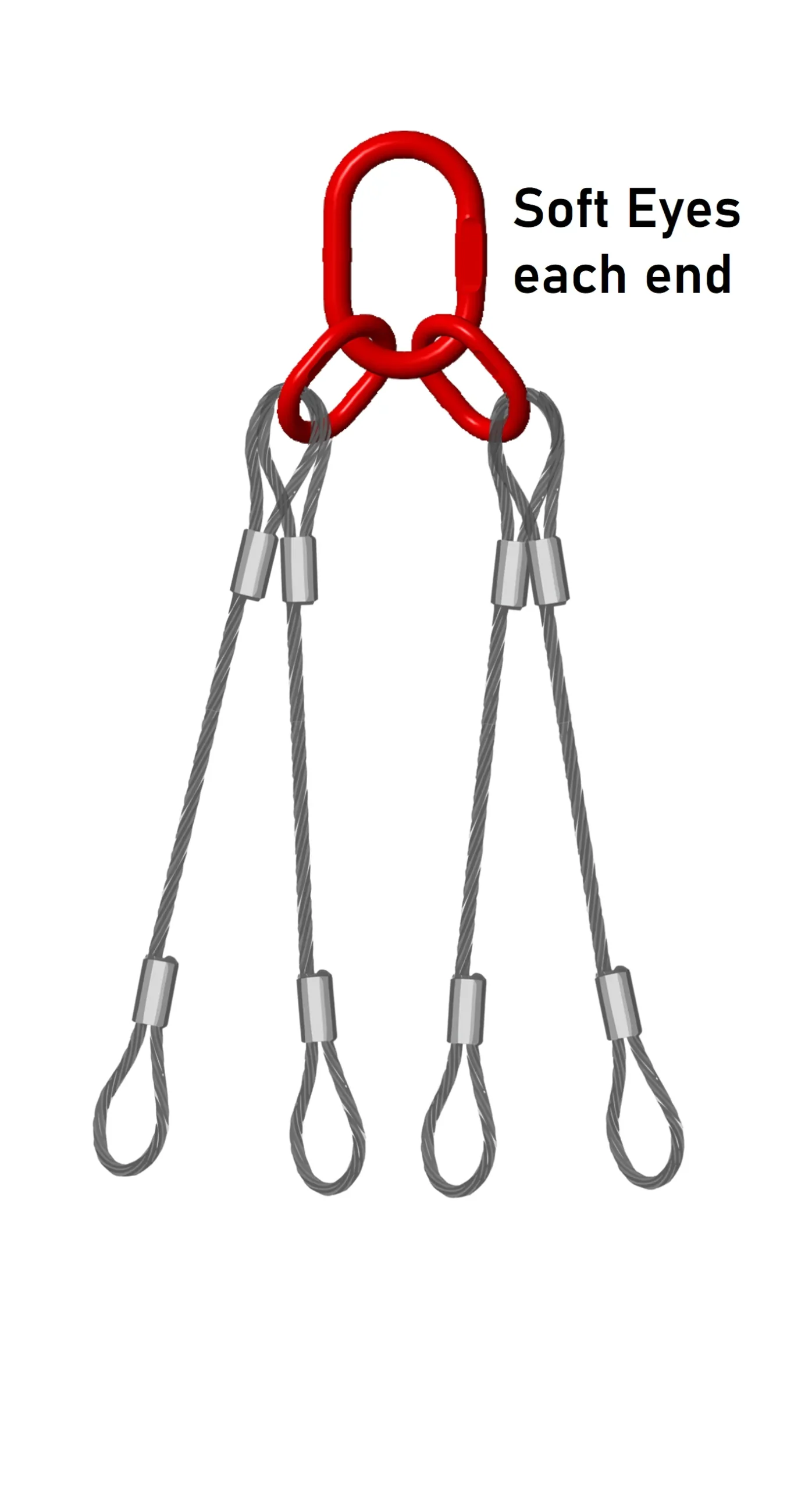

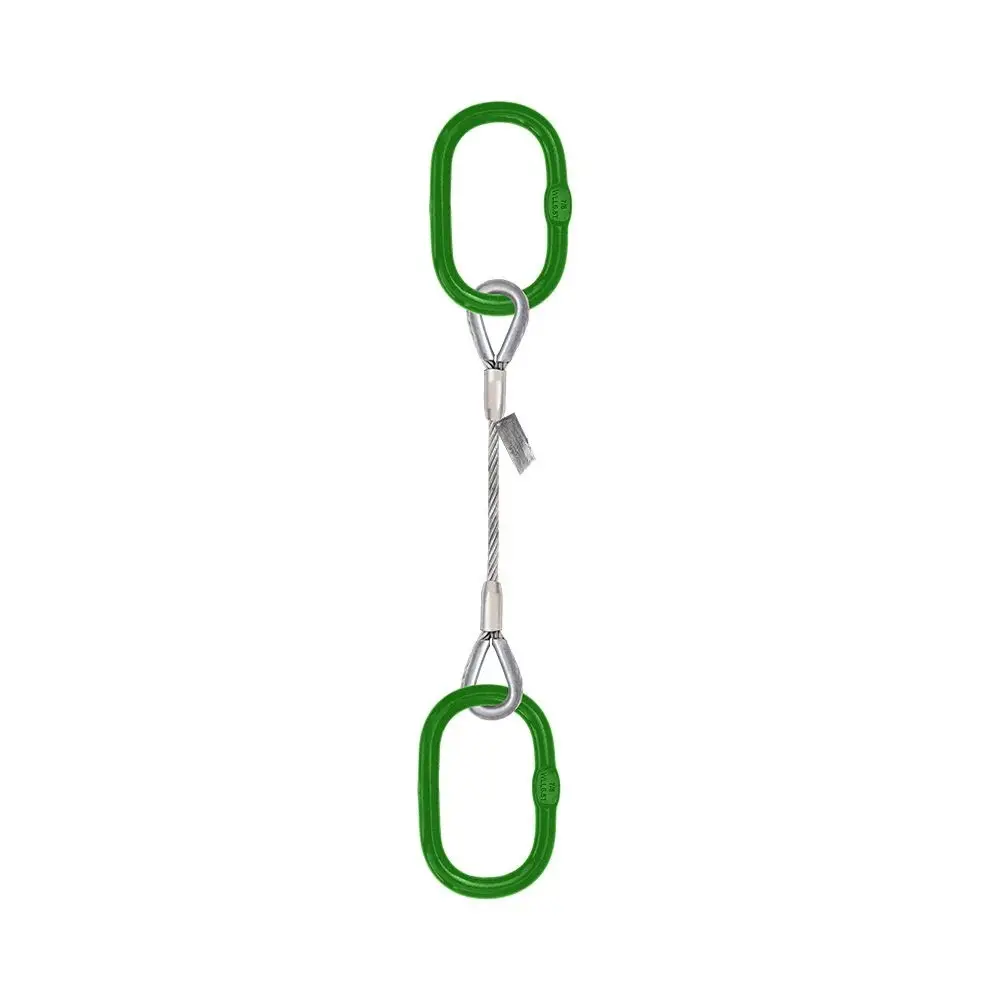

3 types available: smooth rings at each end, shackle rings at each end, master ring with rope hook and fixing hook
Standard lifting height 2 meters
Heights up to 10 meters available
BS EN13414-1:2003
Stainless steel available on request
Specifications:
| Diameter (mm) | Capacity (kg) Single Leg | Capacity (kg) 2 Leg | Capacity (kg) 3 Leg | Capacity (kg) 4 Leg | Weight Soft Eyes Single Leg 2m (kg) | Weight Thimble Eyes Single Leg 2m (kg) | Weight Master Link / Sling Hook Single Leg 2m (kg) | Weight Soft Eyes 2 Leg 2m (kg) | Weight Thimble Eyes 2 Leg 2m (kg) | Weight Master Link / Sling Hook 2 Leg 2m (kg) | Weight Soft Eyes 3 Leg 2m (kg) | Weight Thimble Eyes 3 Leg 2m (kg) | Weight Master Link / Sling Hook 3 Leg 2m (kg) | Weight Soft Eyes 4 Leg 2m (kg) | Weight Thimble Eyes 4 Leg 2m (kg) | Weight Master Link / Sling Hook 4 Leg 2m (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 300 | 500 | 600 | 600 | 0.28 | 0.38 | 1.08 | 0.96 | 1.16 | 1.66 | 2.44 | 2.74 | 3.49 | 2.72 | 3.12 | 4.12 |
| 6 | 400 | 600 | 900 | 900 | 0.41 | 0.51 | 1.16 | 1.22 | 1.42 | 1.92 | 2.83 | 3.13 | 3.88 | 3.24 | 3.64 | 4.64 |
| 8 | 800 | 1200 | 1700 | 1700 | 0.73 | 0.85 | 1.5 | 1.86 | 2.1 | 2.6 | 3.79 | 4.15 | 4.90 | 4.52 | 5.00 | 6.00 |
| 9 | 1000 | 1400 | 2100 | 2100 | 0.92 | 1.08 | 1.73 | 2.24 | 2.56 | 3.06 | 4.36 | 4.84 | 5.59 | 5.28 | 5.92 | 6.92 |
| 10 | 1200 | 1700 | 2600 | 2600 | 1.14 | 1.3 | 2.13 | 2.68 | 3.00 | 3.86 | 5.02 | 5.5 | 6.79 | 6.16 | 6.80 | 8.52 |
| 11 | 1600 | 2100 | 3200 | 3200 | 1.38 | 1.54 | 2.57 | 3.16 | 3.48 | 4.34 | 5.74 | 6.22 | 8.11 | 7.12 | 7.76 | 10.28 |
| 12 | 1800 | 2500 | 3800 | 3800 | 1.65 | 2.03 | 3.1 | 3.7 | 4.46 | 5.8 | 6.55 | 7.69 | 9.70 | 8.2 | 9.72 | 12.40 |
| 13 | 2100 | 3000 | 4500 | 4500 | 1.93 | 2.31 | 3.38 | 4.26 | 5.02 | 6.36 | 8.99 | 10.13 | 10.54 | 10.92 | 12.44 | 13.52 |
| 14 | 2500 | 3500 | 5300 | 5300 | 2.00 | 2.68 | 3.95 | 4.7 | 6.06 | 7.8 | 9.2 | 11.21 | 13.85 | 11.2 | 13.89 | 17.40 |
| 16 | 3200 | 4600 | 6900 | 6900 | 2.82 | 3.5 | 5.75 | 7.14 | 8.5 | 12.2 | 11.66 | 13.70 | 19.25 | 14.48 | 17.20 | 24.60 |
| 18 | 4100 | 5800 | 8700 | 8700 | 3.31 | 4.55 | 7.9 | 8.12 | 10.6 | 15.9 | 16.43 | 20.15 | 28.1 | 19.74 | 24.70 | 35.30 |
| 19 | 4600 | 6400 | 9700 | 9700 | 3.98 | 5.22 | 10.77 | 9.46 | 11.94 | 20.04 | 18.44 | 22.16 | 34.31 | 22.42 | 27.38 | 43.58 |
| 20 | 5100 | 7100 | 10,700 | 10,700 | 4.86 | 5.76 | 12.1 | 11.22 | 13.02 | 22.7 | 21.08 | 23.78 | 38.3 | 25.94 | 29.54 | 48.90 |
| 22 | 6200 | 8600 | 13,000 | 13,000 | 5.92 | 7.44 | 12.99 | 14.6 | 17.64 | 25.68 | 24.26 | 28.82 | 40.97 | 30.18 | 36.26 | 52.46 |
| 24 | 7300 | 10,300 | 15,500 | 15,500 | 7.11 | 9.61 | 17.98 | 16.98 | 21.68 | 35.66 | 32.93 | 40.43 | 61.04 | 40.04 | 50.04 | 77.52 |
| 26 | 8600 | 12,100 | 19,100 | 19,100 | 8.42 | 10.92 | 20.55 | 19.6 | 24.6 | 38.4 | 36.86 | 44.36 | 65.15 | 45.28 | 55.28 | 83 |
| 28 | 10,000 | 14,000 | 21,000 | 21,00 | 9.85 | 12.87 | 22.5 | 22.46 | 28.5 | 42.3 | 41.15 | 50.21 | 71.00 | 51.00 | 63.08 | 90.80 |
| 32 | 13,100 | 18,300 | 27,500 | 27,500 | 13.09 | 19.45 | 32.14 | 31.28 | 44.00 | 69.88 | 56.27 | 75.35 | 105.32 | 69.36 | 94.80 | 134.76 |
| 36 | 16,500 | 23,200 | 34,800 | 34,800 | 16.86 | 26.62 | 43.12 | 41.22 | 60.74 | 93.14 | 83.78 | 113.06 | 146.66 | 100.64 | 139.68 | 184.48 |
| 40 | 20,600 | 28,700 | 43,100 | 43,100 | 21.12 | 31.1 | 51.6 | 54.74 | 74.7 | 100.7 | 129.36 | 159.3 | 198.3 | 150.48 | 190.40 | 242.40 |
| 44 | 24,700 | 34,600 | 52,000 | 52,000 | 25.99 | 37.11 | 61.61 | 64.48 | 86.72 | 120.72 | 143.97 | 177.33 | 228.33 | 169.96 | 214.44 | 282.44 |
| 48 | 29,500 | 41,300 | 62,000 | 62,000 | 31.44 | 46.72 | 76.22 | 80.88 | 111.44 | 135.44 | 197.83 | 243.16 | 279.16 | 229.27 | 289.88 | 337.88 |
| 52 | 34,600 | 48.500 | 72,900 | 72,900 | 36.86 | 52.22 | 92.22 | 103.72 | 134.44 | 189.44 | 213.58 | 259.66 | 342.16 | 250.44 | 311.88 |
