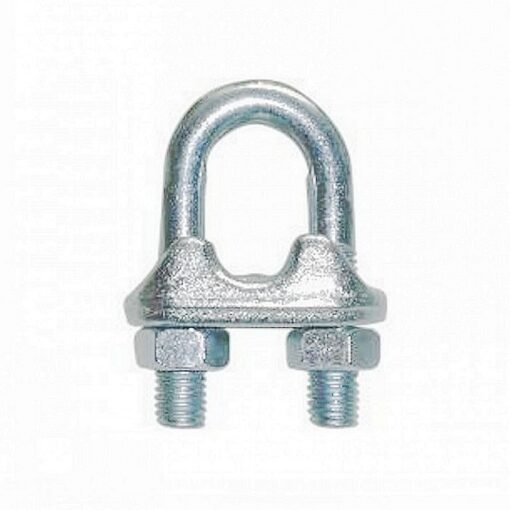

Cable clamps, also known as wire rope clamps, are devices used to secure the ends of wire ropes or cables together, creating loops or connections.
They are commonly used in various industries such as construction, marine, and rigging. Cable clamps help maintain the integrity and strength of wire rope connections while preventing fraying and separation.
Types of Cable Clamps for Wire Rope:
The Installation
The installation of a cable clamps for wire rope follows a specific process to ensure proper performance and safety. Here are the general steps:
1. Positioning: Position the U-clamp around the wire rope where the loop or connection is desired.
2. Saddle Placement: Place the saddle plate on top of the wire rope, centered over the U-bolt.
3. Nuts Installation: Screw the two nuts onto the threaded ends of the U-bolt and tighten them alternately. Ensure they are tightened to the specified torque, following the manufacturer’s guidelines.
4. Check Tightness: After installation, check the tightness of the nuts regularly, especially during the initial period of use and periodically thereafter, to ensure they remain secure.
| SIZE IN | A MM | B MM | C MM | D MM | E MM | F MM | G MM |
| 1/8 | 9 | 12 | 12 | 4 | 9.5 | 19 | 20 |
| 3/16 | 11 | 13.5 | 14 | 5 | 10.8 | 22 | 26 |
| 1/4 | 12.5 | 15.5 | 14 | 6 | 11.5 | 25 | 26 |
| 5/16 | 15.5 | 18 | 16 | 6 | 16 | 31 | 31 |
| 3/8 | 21 | 22 | 20 | 8 | 20 | 40 | 37 |
| 1/2 | 25 | 25 | 24 | 10 | 26 | 47 | 46 |
| 5/8 | 30 | 28 | 28 | 12 | 31 | 55 | 57 |
| 11/16 | 33 | 28.5 | 30 | 12 | 35 | 58.5 | 64 |
| 3/4 | 36.5 | 31 | 34 | 16 | 36 | 65 | 71 |
| 7/8 | 40 | 36 | 38 | 16 | 43 | 72 | 77 |
| 1 | 45 | 40 | 44 | 20 | 48 | 80 | 88 |
