The standard “blue button” lock with a screw pin is a cost-effective lifting and securing device designed to withstand heavy loads. The standard blue button lock meets EN13889 requirements from 1 ton to 25 tons and US Fed Spec RR C 271 specifications, meaning it is suitable for most industrial and recreational applications.
It has been hardened and tempered to increase its strength, with a galvanized coating to protect it from harsh environments and ensure a long service life. A high safety factor of 6:1 and always shipped with an ED declaration of conformity ensures product quality and suitability for purpose.

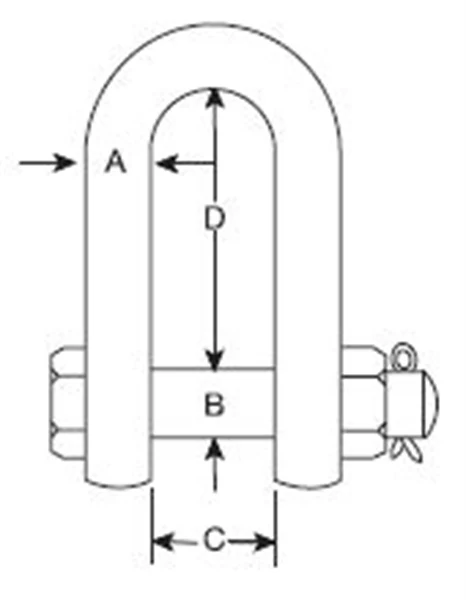

Specifications:
|
Code |
W.L.L |
A |
B |
C |
D |
Weight |
|
|
(tonnes) |
(mm) |
(mm) |
(mm) |
(mm) |
(kgs/each) |
|
A1404 |
1.00 |
9.5 |
12.0 |
17.0 |
31.6 |
0.17 |
|
A1405 |
1.50 |
11.0 |
12.0 |
18.0 |
36.5 |
0.25 |
|
A1406 |
2.00 |
12.7 |
16.0 |
20.6 |
41.3 |
0.44 |
|
A1407 |
3.25 |
16.0 |
19.8 |
27.0 |
51.0 |
0.79 |
|
A1408 |
4.75 |
19.0 |
22.0 |
32.0 |
62.0 |
1.26 |
|
A1409 |
6.50 |
22.0 |
27.0 |
36.6 |
74.8 |
1.88 |
|
A1410 |
8.50 |
25.0 |
30.0 |
43.0 |
81.0 |
2.78 |
|
A1411 |
9.50 |
28.5 |
33.0 |
46.0 |
89.5 |
3.87 |
|
A1412 |
12.00 |
31.8 |
36.0 |
51.6 |
100.8 |
5.26 |
|
A1413 |
13.50 |
34.9 |
39.0 |
57.0 |
112.5 |
6.94 |
|
A1414 |
17.00 |
38.0 |
42.0 |
60.0 |
125.0 |
8.79 |
|
A1415 |
25.00 |
44.0 |
52.0 |
73.0 |
140.5 |
14.99 |
|
A1416 |
35.00 |
50.0 |
56.0 |
82.0 |
171.5 |
20.65 |
|
A1417 |
55.00 |
63.5 |
68.0 |
105.0 |
203.0 |
41.05 |
|
A1418 |
85.00 |
75.0 |
85.0 |
127.0 |
230.0 |
62.00 |
|
A1419 |
120.00 |
88.0 |
95.0 |
133.0 |
262.0 |
106.00 |
