EYE TURNBUCKLE DIN 1480
An eye turnbuckle is a type of mechanical device used to adjust the tension or length of ropes, cables, or wires. It consists of two thread eyelets (often with left-hand and right-hand threads) and a central body that can rotate to tighten or loosen the connection.
The DIN 1480 standard provides specifications for turnbuckles that have end fittings with threads and are typically uses for the connection of wire ropes.
The standard covers turnbuckles made of steel and is intended to ensure their safety, performance, and interchangeability.
COMMON USES OF EYE TURNBUCKLE:
1. Rigging and Lifting: Eye turnbuckles are commonly use in rigging and lifting applications to adjust the tension of wire ropes, cables, or chains use to lift heavy loads. They allow for precise adjustments to ensure the load is properly balance and secure.
2. Tensioning Fences and Cables: In construction and landscaping, eye turnbuckles are use to tension fences, wire cables, or guy wires. This ensures the stability and strength of structures like fences, trellises, and radio towers.
3. Sailing and Boating: Eye turnbuckles are frequently use in sailing and boating to tension various rigging components, such as shrouds and stays. Properly tensioned rigging is essential for maintaining the stability and performance of the vessel under sail.
4. Agricultural Applications: Eye turnbuckles find use in agricultural settings to tension wires in grapevine trellising, fence installations, and other applications.
END TYPES OF STEEL CABLE TURNBUCKLE
Steel cable turnbuckles can have different end types or end fittings to suit various applications and connection requirements.

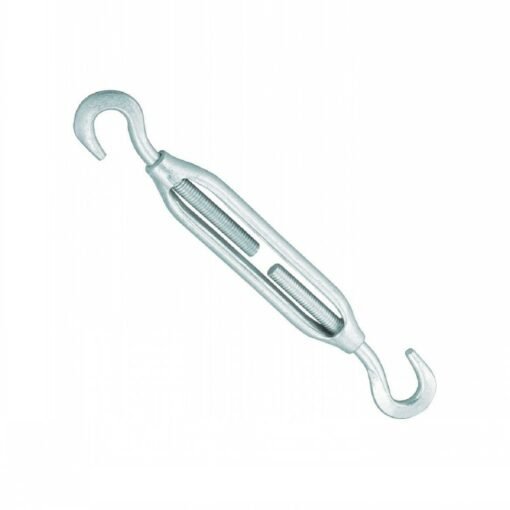

1. Hook Ends: Turnbuckles with hook ends have a hook-shaped fitting on each end. These hooks can be use to attach the turnbuckle to an anchor point or other components in the system.
2. Eye Ends: Turnbuckles with eye ends have an eyelet or loop-shaped fitting on each end. These eye ends allow for easy connection of the turnbuckle to other components using pins, bolts, or other fasteners.
3. Hook and Eye Ends: Some turnbuckles may have a combination of a hook end on one side and an eye end on the other side. This provides flexibility in connecting the turnbuckle to different types of components.
4. Threaded Rod Ends: Turnbuckles with threaded rod ends have a threaded rod on each end. These rods can be directly screw into or connected with other threaded components.
5. Jaw Ends: Turnbuckles with jaw ends have a jaw-shaped fitting on each end. The jaws can be use to secure the turnbuckle to other components or attachments.
6. Jaw and Eye Ends: Turnbuckles with jaw and eye ends have a jaw and eye fitting on each end. The jaw can accommodate pins, bolts, or other fasteners to connect with other components.
DIMENSIONS:
1480 turnbuckle hook eye dimension
