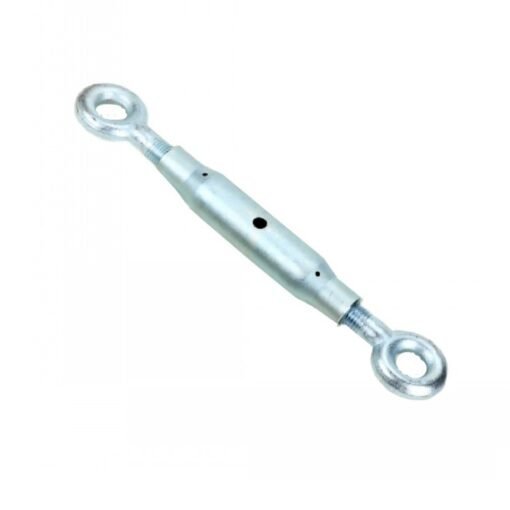

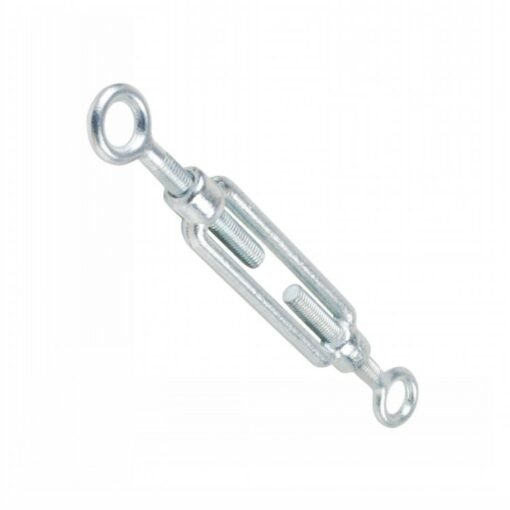

Galvanized Turnbuckle Eye/Eye – Commercial Type, Malleable Steel
Reliable Tensioning for Light to Medium-Duty Applications

Key Features:

• Malleable Cast Iron Body: Provides adequate strength and ductility for non-critical, static-load applications (not rated for overhead lifting or personnel safety).
• Eye-and-Eye Design: Enables easy attachment to hooks, shackles, or wire rope eyes without additional hardware.
• Hot-Dip Galvanized Finish: Offers excellent corrosion resistance for outdoor, coastal, or humid environments.
• Commercial Grade: Complies with general industry standards for tensioning hardware in non-hazardous settings.
• Simple Operation: Rotate the body to tighten or loosen, allowing precise tension control.

Common Applications:

• Guy wire tensioning for tents, masts, antennas, and temporary structures
• Agricultural fencing and vineyard trellising
• Light-duty rigging and cargo lashing
• Marine dock lines and non-critical mooring systems
• Architectural bracing and signage support

Safety & Usage Guidelines:

• Not suitable for overhead lifting, dynamic loads, or life-safety applications—use only forged steel turnbuckles (e.g., Grade 80) for such purposes.
• Never exceed the manufacturer’s rated Working Load Limit (WLL).
• Inspect regularly for cracks, thread wear, or eye deformation—malleable iron can fail suddenly under shock or fatigue.
• Ensure eyes are fully engaged and not subjected to side-loading.

For everyday tensioning needs where durability, affordability, and ease of use matter—the Galvanized Eye/Eye Turnbuckle delivers dependable performance.

DIMENSIONS

commercial-turnbuckle-size
