GT horizontal lifting clamps are designed for the safe horizontal transport of standard panels and are ideal for use in workshops and facilities where panels or steel sheets need to be lifted and transported horizontally.
Features:
Matte black finish
Steel plate must be less than HRC37 (HB345)
Teeth and jaws made of special hardened steel

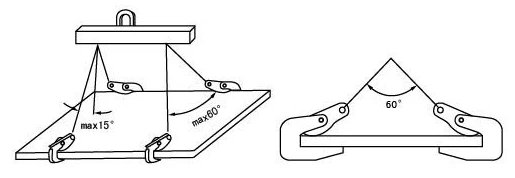

Easy to use with two-foot slings with a maximum angle of 90 degrees
Ideal for transporting steel plates or machinery into place
Specifications:
| Code | Capacity Per Pair | Jaw Opening | A Max . | B | C | D Max. | E | Weight |
|---|---|---|---|---|---|---|---|---|
| HTC1.5 | 1500kg | 0-25mm | 25mm | 125mm | 50mm | 175mm | 25mm | 4kg |
| HTC2 | 2000kg | 0-30mm | 30mm | 156mm | 65mm | 200mm | 30mm | 6kg |
| HTC3 | 3000kg | 0-30mm | 30mm | 157mm | 65mm | 204mm | 30mm | 7kg |
| HTC4 | 4000kg | 0-35mm | 35mm | 201mm | 83mm | 245mm | 35mm | 9kg |
| HTC5 | 5000kg | 0-45mm | 45mm | 231mm | 90mm | 310mm | 40mm | 14kg |
| HTC10 | 10000kg | 0-50mm | 50mm | 185mm | 74mm | 260mm | 30mm | 9kg |
