The GT VPC series vertical sheet metal lifting clamp is designed to facilitate the vertical lifting and transport of sheet metal in conjunction with lifting equipment such as cranes or forklifts. Ideal for vertical lifting and turning of sheet metal and steel structures weighing up to 5000 kg (depending on model).
Specifications:

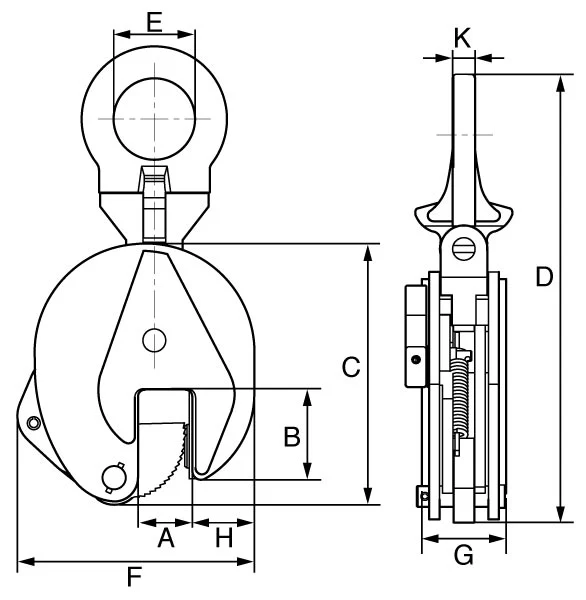

| Code | Capacity (Kgs) | Jaw Opening Plate Thickness (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VPC0.5 | 500 | 0-15 | 30 | 43 | 34.5 | 15 | 103 | 10 | 212 | 36 | 2.0 |
| VPC1 | 1000 | 0-20 | 48 | 63 | 51 | 20 | 138 | 12 | 294 | 50 | 4.8 |
| VPC2 | 2000 | 0-25 | 68 | 76 | 59 | 25 | 164 | 16 | 370 | 52 | 6.5 |
| VPC3 | 3000 | 0-25 | 74 | 85 | 56 | 30 | 193 | 20 | 418 | 78 | 15 |
| VPC5 | 5000 | 0-30 | 80 | 90 | 65 | 240 | 222 | 450 | 88 | 12 |
