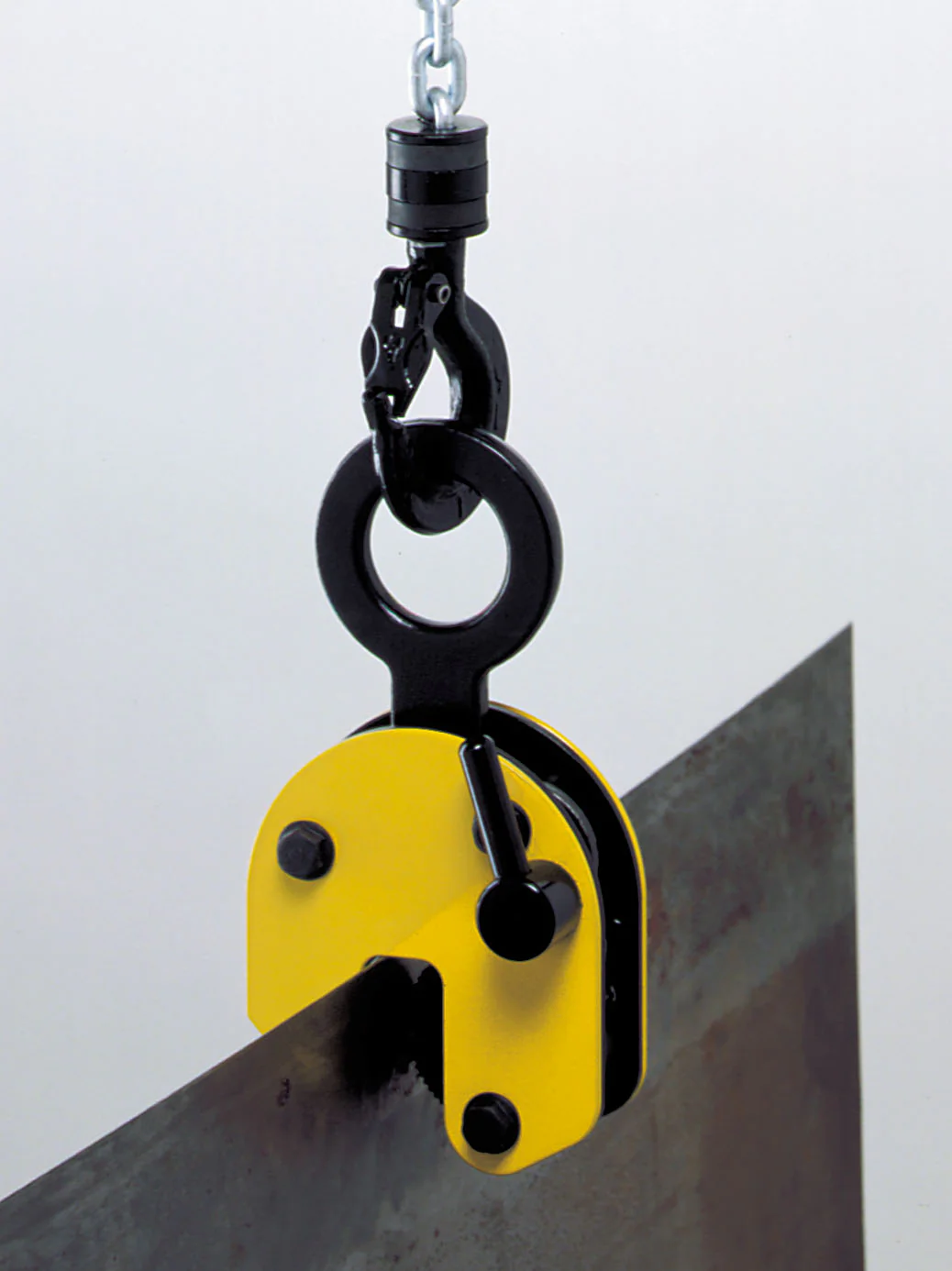

Camlok 92 Series Vertical Panel Clamps
Camlok 92 Series clamps are manufactured in the UK to the highest quality, designed to be robust and built to last. Not only are they ideal for lifting standard panels, they can also be used to transport steel structures and sections. A pair of panel clamps with a spreader bar is recommended for long materials that tend to sag or bend.
Function
The jaw is opened and closed by a locking lever, except for the 92-500, which uses a positive spring-loaded cam.
A safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load on the jaw.
Manufacturing and Parts
These plate clamps are easy to maintain, making it easy to replace readily available parts. Clamps can be repaired by the factory or by a qualified person.
They can be supplied with a link and chain upon special request.

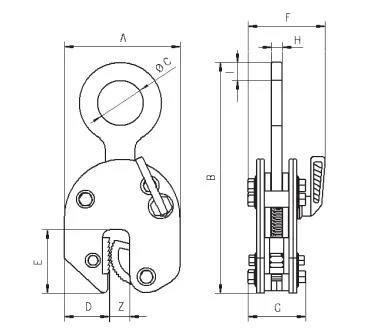

Specifications:
| Model | WLL Kgs |
Jaw (Z) Capacity mm | A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H mm |
I mm |
Weight Kgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 92-500 | 50-500 | 0-16 | 99 | 195 | 29 | 33 | 47 | 50 | 48 | 11 | 15 | 1.5 |
| 92-1500 | 150-1500 | 0-20 | 126 | 225 | 50 | 49 | 70 | 82 | 55 | 13 | 20 | 3.0 |
| 92-2000 | 200-2000 | 0-32 | 192 | 312 | 80 | 75 | 96 | 100 | 81 | 20 | 24 | 8 |
| 92-3000 | 300-3000 | 0-32 | 192 | 320 | 80 | 75 | 96 | 100 | 81 | 30 | 30 | 12 |
