Swivel Eye Single Pulley Block with die-cast metal wheel and zinc plated finish for rope guiding, cable adjustment, and light-duty utility use. Smooth rotating eye design available in multiple sizes.
Swivel Eye Single Pulley Block is a compact light-duty pulley designed for guiding, redirecting, and adjusting ropes, cords, and light cables. It features a single die-cast metal wheel with a 360° swivel eye, allowing flexible movement and easy alignment during operation.
Manufactured from durable die-cast zinc alloy with a corrosion-resistant zinc plated finish, this pulley block provides smooth wheel rotation and reliable performance for everyday utility applications.

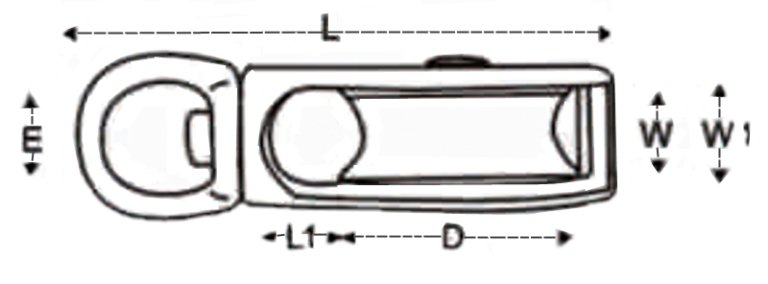

| Size | D | Dia Rope Size | L | L1 | W | W1 | E | Gm/Pc |
| 1/2” | 1/2” | 5/32” | 1 5/8” | 11/32” | 5/16” | 9/32” | 7/16” | 19 |
| 3/4” | 3/4” | 3/16” | 1 5/8” | 1/4” | 5/16” | 9/32” | 7/16” | 27 |
| 1” | 1” | 1/4” | 2 1/8” | 3/8” | 13/32” | 3/8” | 7/16” | 47 |
| 1 1/4” | 1 1/4” | 5/16” | 3” | 1/2” | 17/32” | 1/2” | 13/16” | 80 |
| 1 1/2” | 1 1/2” | 3/8” | 3” | 13/32” | 17/32” | 1/2” | 13/16” | 95 |
| 2” | 2” | 7/16” | 3 7/8” | 9/16” | 9/16” | 1/2” | 13/16” | 166 |
| Size (Inch) | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
|---|
