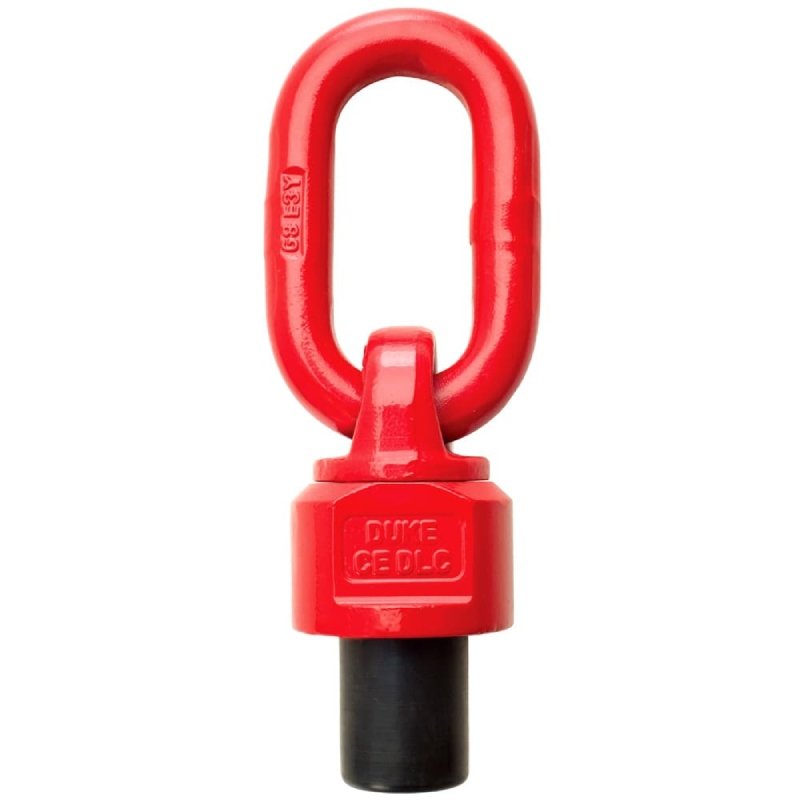

Swivel Lifting Eye Bolt is a heavy-duty rotating lifting point manufactured from high tensile Grade 80 alloy steel, designed for safe lifting, turning, pulling, and load positioning applications.
This bolt features a 360° swivel body with pivoting lifting ring, allowing the ring to align with the direction of load pull. It helps reduce side loading risks and provides safer lifting compared to standard eye bolts.
Available in metric thread sizes from M8 to M42, with Working Load Limits from 0.6 Ton to 16 Ton.
| Thread | Weight (kg) | WLL 0° (Ton) | WLL 90° (Ton) | A/W (mm) | B (mm) | E (mm) | G/T (mm) | Ø (mm) |
|---|---|---|---|---|---|---|---|---|
| M8 | 0.41 | 0.6 | 0.3 | 55/30 | 36 | 13 | 51/41 | 14 |
| M10 | 0.43 | 1 | 0.5 | 55/30 | 36 | 18 | 51/41 | 14 |
| M12 | 0.44 | 1 | 0.5 | 55/30 | 36 | 18 | 51/41 | 14 |
| M16 | 0.50 | 2 | 1.12 | 55/30 | 36 | 20 | 52/42 | 14 |
| M20 | 0.96 | 4 | 2 | 70/35 | 49.5 | 30 | 68/56 | 16 |
| M24 | 1.47 | 6.3 | 3.15 | 85/40 | 57 | 30 | 78/65.5 | 18 |
| M30 | 2.17 | 10.6 | 5.3 | 85/40 | 66 | 35 | 96.5/80.5 | 20 |
| M36 | 3.60 | 12.8 | 8 | 115/50 | 80 | 50 | 109/89.5 | 22 |
| M42 | 3.95 | 16 | 10 | 115/50 | 80 | 50 | 109/89.5 | 25 |
| Thread Size | M8, M10, M12, M16, M20, M24, M30, M36, M42 |
|---|
