US Type Electric Galvanized Jaw & Jaw Turnbuckle with clevis jaw connections at both ends for secure and adjustable tensioning. Available in multiple sizes and take-up lengths, with Working Load Limits (WLL) from 500 lb to 75,000 lb. Suitable for wire rope, structural, construction and industrial tensioning applications. Supply and delivery throughout Saudi Arabia.
The US Type Electric Galvanized Jaw And Jaw Turnbuckle is a heavy-duty
tensioning component designed for controlled adjustment of tension and length
in wire rope, cable, structural bracing and industrial tensioning systems.

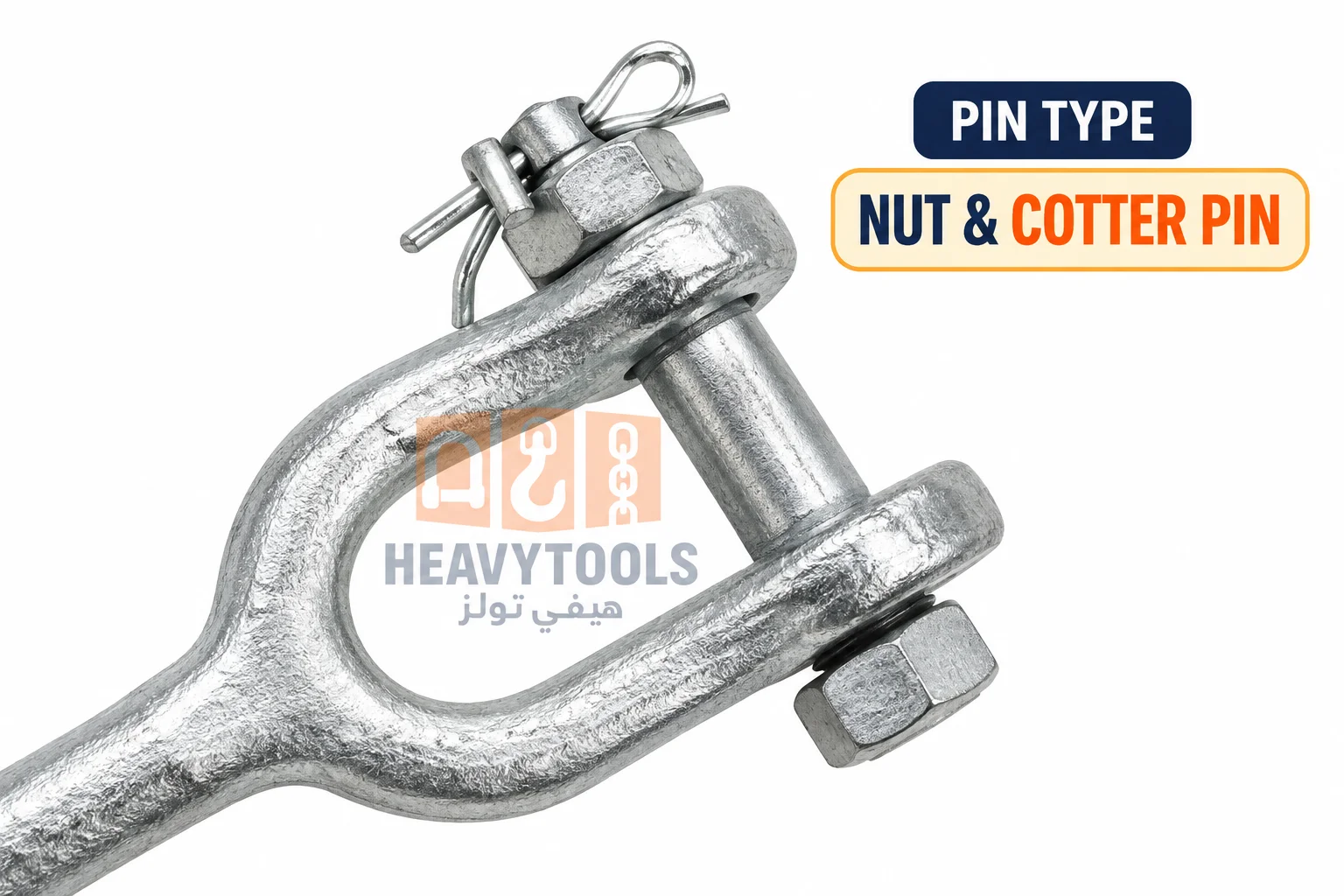

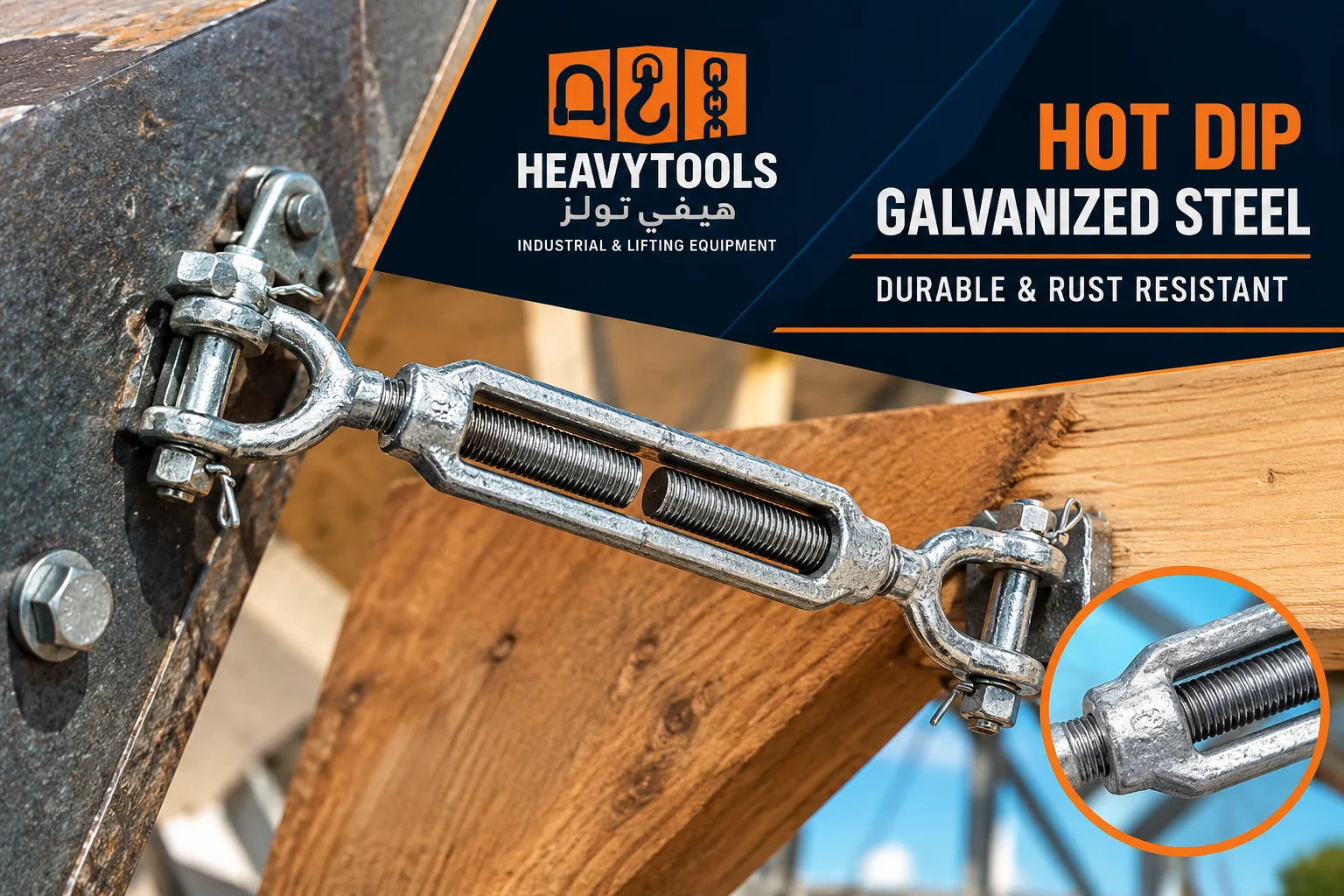

It features clevis jaw connections at both ends, providing
secure pin connections to compatible pad eyes, eye bolts and other suitable
attachment points. By rotating the central turnbuckle body, the connected
assembly can be tightened or loosened without rotating the wire rope or cable.

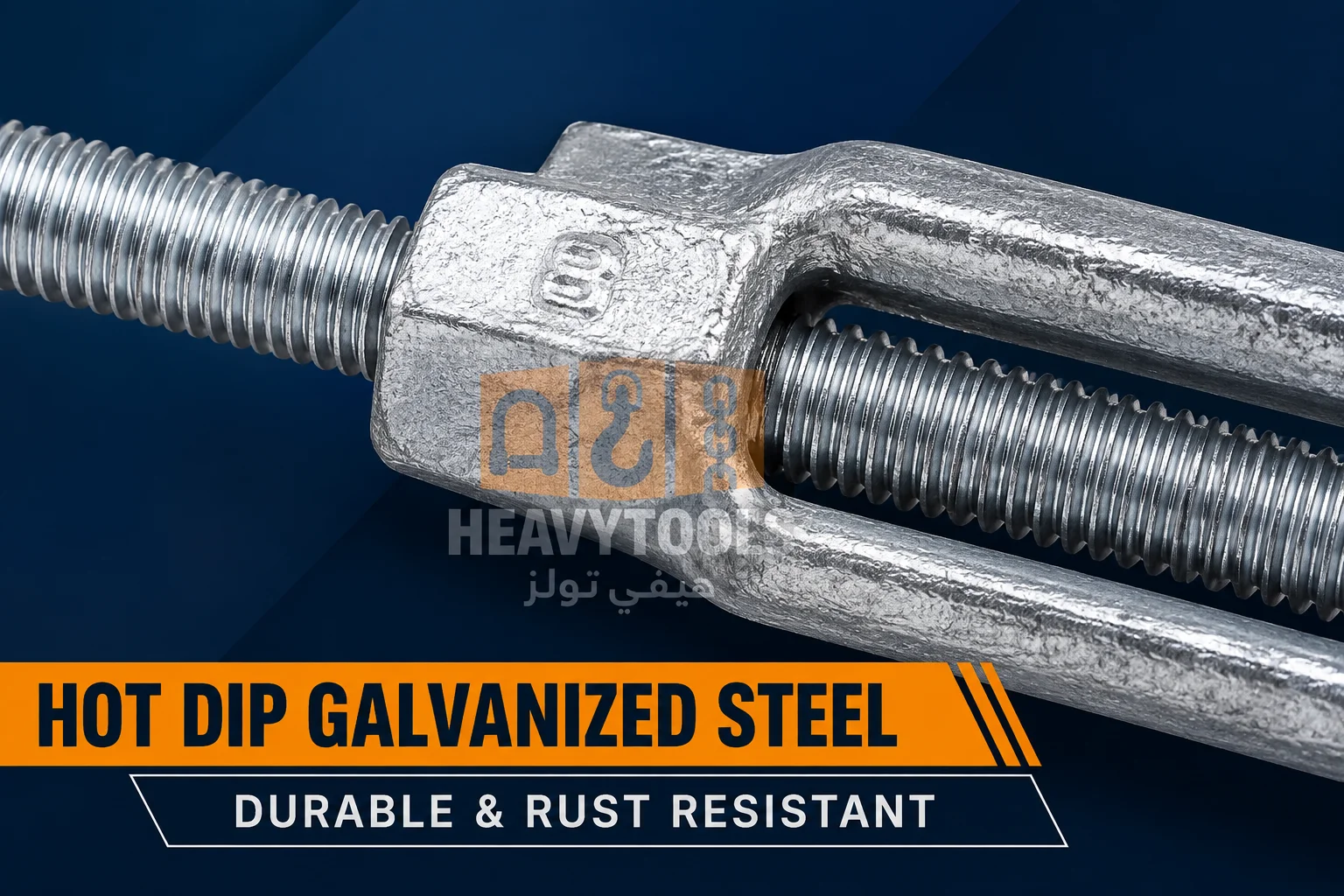

The galvanized finish provides corrosion protection for outdoor, construction
and industrial environments. A wide range of thread diameters and take-up
lengths is available for different load and installation requirements.
The Jaw and Jaw configuration provides a positive pin connection at both ends
of the turnbuckle. This makes it suitable for installations where the
turnbuckle must connect directly to compatible eyes, brackets, pad eyes or
other suitable rigging attachment points.
The open-body design provides access to the threaded sections and allows
controlled adjustment of the assembly. The galvanized surface helps protect
the steel against corrosion during outdoor and industrial service.
| Product Type | US Type Electric Galvanized Turnbuckle |
|---|---|
| Configuration | Jaw * Jaw |
| Finish | Electric Galvanized |
| Loading Direction | Straight or in-line pull only |
| Proof Load | 2.5 × Working Load Limit (WLL) |
| Safety factor | 5:1 Safety factor |
| Size Range | 1/4″ × 4″ to 2-3/4″ × 24″ |
| WLL Range | 500 lb to 75,000 lb |
| Specification Units | Imperial – inches and pounds |
Use the specification table below to select the required
thread diameter, take-up, Working Load Limit (WLL) and dimensions.

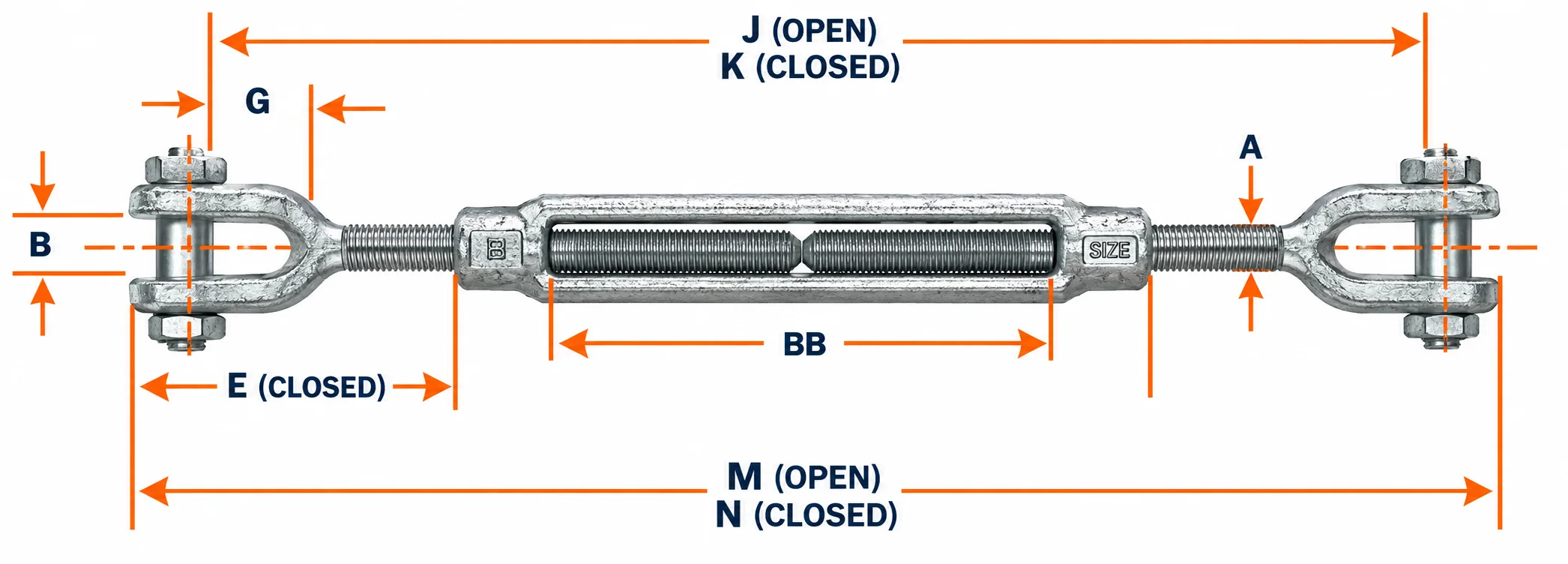

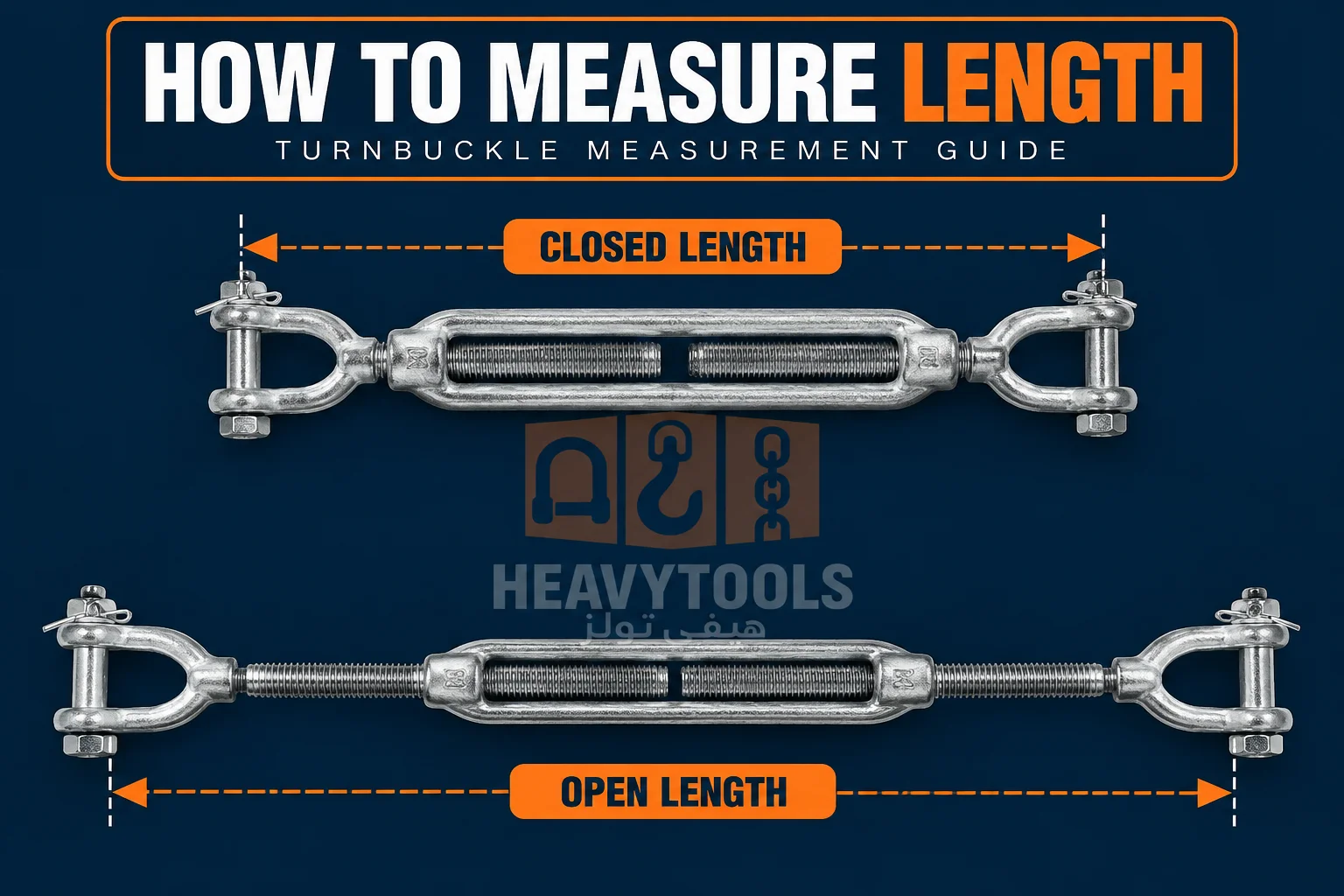

The dimensional references correspond to the Jaw & Jaw turnbuckle drawing.
Dimension Reference:
A, D, E (Closed), G, J (Open), K (Closed), M (Open), N (Closed) and BB.
All dimensional values are shown in inches.
| Thread Dia. × Take-Up | Weight Each (lb) | WLL (lb) | A | D | E Closed | G | J Open | K Closed | M Open | N Closed | BB |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4″ × 4″ | 0.36 | 500 | 0.25 | 0.45 | 1.58 | 0.62 | 10.9 | 6.9 | 11.9 | 7.9 | 4 |
| 5/16″ × 4-1/2″ | 0.52 | 800 | 0.31 | 0.50 | 1.98 | 0.87 | 12.36 | 8.36 | 13.9 | 9.4 | 4.5 |
| 3/8″ × 6″ | 0.81 | 1,200 | 0.38 | 0.54 | 2.12 | 0.87 | 16.14 | 10.14 | 17.38 | 11.38 | 6 |
| 1/2″ × 6″ | 1.56 | 2,200 | 0.50 | 0.55 | 2.75 | 1.10 | 18.5 | 11.5 | 20 | 13 | 6 |
| 1/2″ × 9″ | 1.74 | 2,200 | 0.50 | 0.55 | 2.75 | 1.10 | 24.5 | 14.5 | 26 | 16 | 9 |
| 1/2″ × 12″ | 2.40 | 2,200 | 0.50 | 0.55 | 2.75 | 1.10 | 30.5 | 17.5 | 32 | 19 | 12 |
| 5/8″ × 6″ | 2.72 | 3,500 | 0.63 | 0.82 | 3.50 | 1.31 | 20.05 | 12.8 | 22.13 | 14.88 | 6 |
| 5/8″ × 9″ | 3.43 | 3,500 | 0.63 | 0.82 | 3.50 | 1.31 | 26.05 | 15.8 | 28.13 | 17.88 | 9 |
| 5/8″ × 12″ | 3.91 | 3,500 | 0.63 | 0.82 | 3.50 | 1.31 | 32.05 | 18.8 | 34.13 | 20.88 | 12 |
| 3/4″ × 6″ | 4.11 | 5,200 | 0.75 | 1.03 | 4.18 | 1.50 | 21.5 | 14 | 24.1 | 16.6 | 6 |
| 3/4″ × 9″ | 5.46 | 5,200 | 0.75 | 1.03 | 4.18 | 1.50 | 27.5 | 17 | 30.1 | 19.6 | 9 |
| 3/4″ × 12″ | 6.43 | 5,200 | 0.75 | 1.03 | 4.18 | 1.50 | 33.5 | 20 | 36.1 | 22.6 | 12 |
| 3/4″ × 18″ | 8.07 | 5,200 | 0.75 | 1.03 | 4.18 | 1.50 | 45.5 | 26 | 48.1 | 28.6 | 18 |
| 7/8″ × 12″ | 8.17 | 7,200 | 0.88 | 1.23 | 4.85 | 1.80 | 35.11 | 21.36 | 38.07 | 24.32 | 12 |
| 7/8″ × 18″ | 10.78 | 7,200 | 0.88 | 1.23 | 4.85 | 1.80 | 47.11 | 27.36 | 50.07 | 30.32 | 18 |
| 1″ × 6″ | 10.18 | 10,000 | 1.00 | 1.31 | 5.53 | 2.10 | 24.72 | 16.72 | 28.06 | 20.06 | 6 |
| 1″ × 12″ | 12.52 | 10,000 | 1.00 | 1.31 | 5.53 | 2.06 | 36.72 | 22.72 | 40.06 | 26.06 | 12 |
| 1″ × 18″ | 15.14 | 10,000 | 1.00 | 1.31 | 5.53 | 2.06 | 48.72 | 28.72 | 52.06 | 32.06 | 18 |
| 1″ × 24″ | 18.08 | 10,000 | 1.00 | 1.31 | 5.53 | 2.06 | 60.72 | 34.72 | 64.06 | 38.06 | 24 |
| 1-1/4″ × 12″ | 20.59 | 15,200 | 1.25 | 1.86 | 7.21 | 2.81 | 39.84 | 25.34 | 44.04 | 29.54 | 12 |
| 1-1/4″ × 18″ | 24.68 | 15,200 | 1.25 | 1.86 | 7.21 | 2.81 | 51.84 | 31.34 | 56.04 | 35.54 | 18 |
| 1-1/4″ × 24″ | 28.20 | 15,200 | 1.25 | 1.86 | 7.21 | 2.81 | 63.84 | 37.34 | 68.04 | 41.54 | 24 |
| 1-1/2″ × 12″ | 30.69 | 21,400 | 1.50 | 2.25 | 7.88 | 2.81 | 41.5 | 26.5 | 46.5 | 31.5 | 12 |
| 1-1/2″ × 18″ | 36.75 | 21,400 | 1.50 | 2.25 | 7.88 | 2.81 | 53.5 | 32.5 | 58.5 | 37.5 | 18 |
| 1-1/2″ × 24″ | 40.67 | 21,400 | 1.50 | 2.25 | 7.88 | 2.81 | 65.5 | 38.5 | 70.5 | 43.5 | 24 |
| 1-3/4″ × 18″ | 54 | 28,000 | 1.75 | 2.60 | 9.40 | 3.38 | 53.38 | 35.38 | 59.18 | 41.18 | 18 |
| 1-3/4″ × 24″ | 63.36 | 28,000 | 1.75 | 2.60 | 9.40 | 3.38 | 65.38 | 41.38 | 71.18 | 47.18 | 24 |
| 2″ × 24″ | 94.25 | 37,000 | 2.00 | 2.62 | 11.86 | 3.69 | 69.54 | 45.54 | 76.72 | 52.72 | 24 |
| 2-1/2″ × 24″ | 165 | 60,000 | 2.50 | 3.06 | 13.56 | 4.44 | 72.98 | 48.98 | 82.18 | 58.18 | 24 |
| 2-3/4″ × 24″ | 198 | 75,000 | 2.75 | 3.68 | 15.22 | 4.19 | 74.75 | 50.75 | 85.5 | 61.5 | 24 |
Table Units: Weight and Working Load Limit are shown in pounds (lb).
Dimensions A, D, E, G, J, K, M, N and BB are shown in inches.
Note: Specifications and dimensions should be confirmed when ordering,
particularly where installation dimensions are critical.
The turnbuckles are rated according to the Working Load Limits shown in the
specification table.
The stated Working Load Limit (WLL) must never be exceeded.
The required size should be selected according to the applied load and the
conditions of the intended installation.
US Type Galvanized Jaw & Jaw Turnbuckles are commonly used where secure
clevis connections and controlled tension adjustment are required.
Before ordering, confirm the following information:
US Type Jaw & Jaw Turnbuckles are recommended for
straight or in-line pull only. Avoid side loading, bending
or other unintended loading conditions.
Never exceed the specified Working Load Limit (WLL).
Before installation, confirm that the selected turnbuckle, connecting
hardware and attachment points are suitable for the intended load and
application.
Before each use, inspect the turnbuckle body, threads, jaw ends, pins and
retaining components. Do not use components showing excessive wear,
deformation, damaged threads, cracks or significant corrosion.
For pricing and availability, please provide:
thread diameter × take-up, required WLL, quantity and application.
If dimensional compatibility is important, include the required connection
or installation dimensions.
Heavy Tools Company Commercial (L.L.C.)
Industrial & Lifting Equipment – Saudi Arabia
| Thread Diameter: | 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", 2-3/4" |
|---|---|
| Take-Up (Body) Length: | 4", 4-1/2", 6", 9", 12", 18", 24" |
