The DIN 1480 Galvanized Hook & Eye Turnbuckle is designed for reliable tension adjustment in steel wire rope, cable, fencing, and structural bracing applications.
Manufactured from galvanized steel for corrosion protection, it features an adjustable threaded body with convenient hook and eye connections.
Available from Heavy Tools Company, supplying industrial rigging and tensioning equipment across Saudi Arabia.
Contact us for sizes, technical specifications, and quotations.
The DIN 1480 Galvanized Hook & Eye Turnbuckle is a durable steel tensioning component designed for adjusting tension and length in wire rope, cable, fencing, structural bracing, and general industrial applications.
Manufactured with a hook fitting at one end and an eye fitting at the other, this turnbuckle allows convenient connections and controlled tension adjustment. Its galvanized steel finish provides corrosion protection for outdoor and industrial environments.
Key Features
DIN 1480 Design: Manufactured in the DIN 1480 dimensional style.
Galvanized Steel: Zinc coating helps protect against corrosion and rust.
Hook & Eye Configuration: Combines convenient hook attachment with a closed eye connection.
Adjustable Tension: Opposing threads allow easy adjustment by rotating the central body.
Versatile Applications: Suitable for wire rope tensioning, fencing, cable assemblies, and structural support systems.
Multiple Sizes: Available in various sizes to meet project requirements.
Dimensions & Specifications
The DIN 1480 Galvanized Hook & Eye
Turnbuckle is available in multiple thread
sizes from M6 to M48.
The following table provides dimensional references
and approximate unit weights for product selection.

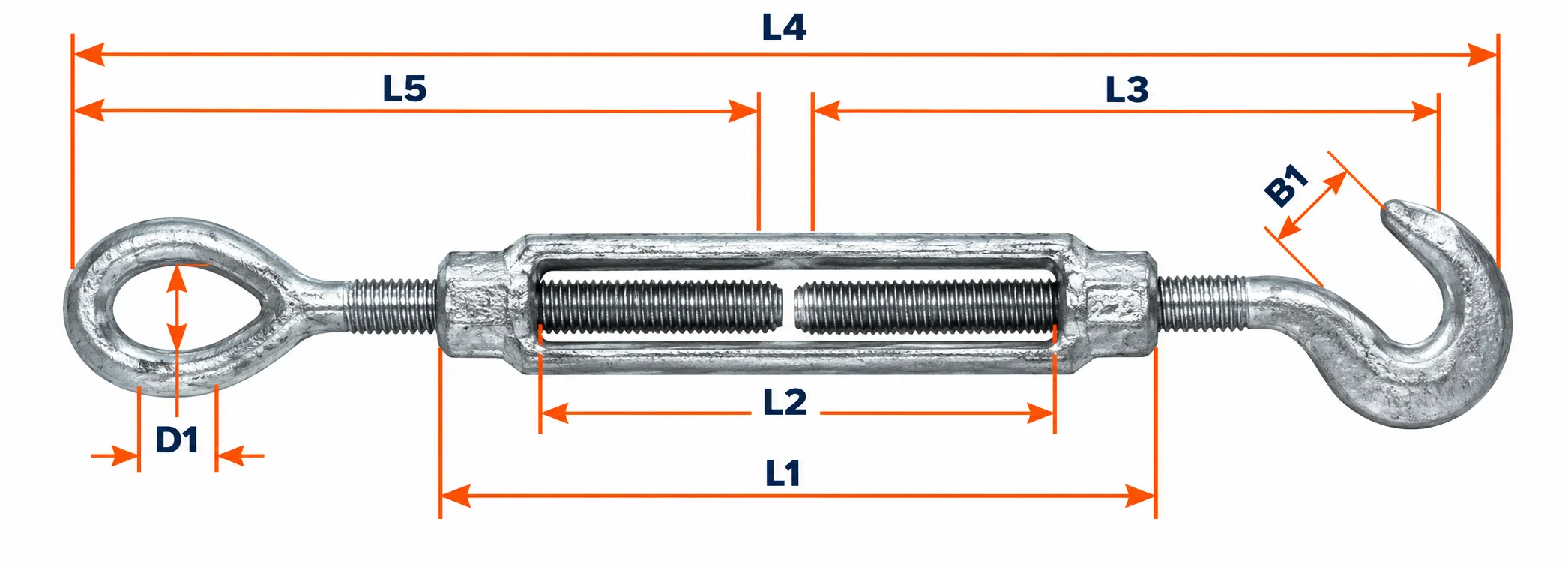

DIN 1480 Carbon Steel Galvanized Hook & Eye Turnbuckle – Technical dimensions and measurement reference for sizes M6 to M48.
Technical Dimensions
Thread
(mm)
L1
(mm)
L2
(mm)
L3
(mm)
B1
(mm)
L4
(mm)
D1
(mm)
L5
(mm)
Weight
(kg/100 pcs)
M6
110
80
85
8.5
80
9
172
9.5
M8
110
75
85
11
84
10
182
16.5
M10
125
85
112
13.5
105
14
213
29
M12
125
80
117
15.5
115
16
238
43
M14
140
90
122
18.5
122
18
263
62
M16
170
110
138
19
165
22
320
92
M20
200
130
170
20.5
167
24
367
163
M22
220
145
185
26
167
27
398
220
M24
255
170
205
26
205
27
447
300
M30
255
160
225
33
255
31
512
460
M36
295
180
255
44
276
43
568
768
M42
330
200
340
48
260
49
683
1290
M48
355
195
360
58
300
58
755
2100
Technical Notes:
All dimensions are expressed in millimeters (mm).
Weights are approximate and stated per 100 pieces.
L1, L2, L3, L4, L5, B1 and D1 correspond to the supplier’s dimensional drawing.
Dimensions may vary according to manufacturing tolerances.
Working Load Limit (WLL) is not specified in this dimensional table.
For lifting applications, manufacturer approval and verified load ratings are required.
Technical Specifications
Product Type
Hook & Eye Turnbuckle
Standard / Design
DIN 1480
Material
Carbon Steel
Surface Finish
Galvanized Zinc Coating
End Connections
Hook & Eye
Thread Design
Right-Hand & Left-Hand
Available Sizes
Subject to Supplier Availability
Working Load Limit
Refer to Manufacturer Specifications
Applications
Wire Rope, Cable Tensioning, Fencing & Bracing
Typical Applications
Steel wire rope and cable tensioning systems.
Industrial fencing and perimeter installations.
Structural bracing and support cables.
General construction and industrial tensioning.
Outdoor cable and wire rope assemblies.
Safety & Installation Guidelines
Use turnbuckles for straight or in-line pulling only.
Avoid side loading, bending, and shock loading.
Ensure sufficient thread engagement at both ends.
Do not exceed the manufacturer’s rated load.
Inspect threads, hooks, eyes, and the galvanized finish before use.
Open hook fittings require special attention to prevent accidental disengagement.
Important: DIN 1480 dimensional conformity does not automatically establish a Working Load Limit, proof-load rating, or safety factor. Use for overhead lifting only where the complete assembly is specifically rated and approved by the manufacturer for that purpose.
